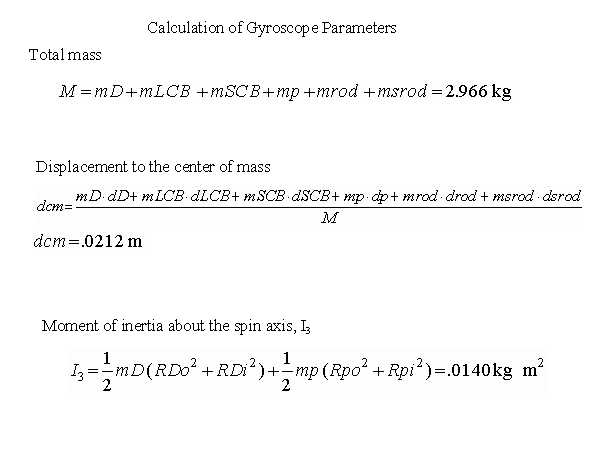

Gyroscope Parameters, M, dcm, I3
Slide 10 of 20
Go to slide:
1: Modeling the Precession
2: Equations of Motion
3: More Equations of Motion
4: Apparatus
5: Experimental Procedure
6: Calibration of Rotary € Sensor
7: Calibration of € Rotary Sensor
8: Gyroscope Detail
9: Gyroscope Data
10: Gyroscope Parameters, M, dcm, I3
11: I1 Calculation
12: Experimental Determination of I3
13: € and €dot graphs
14: € and €dot graphs
15: Secular €dot and b graphs
16: Secular €dot fit
17: €dot fit
18: €dot squared fit
19: Energies
20: Angular Momenta
