Wave Motion Demonstrator
Purchase Single Section - Module 1
Purchase Complete Wave Motion Demonstrator - All 3 Modules
Introduction

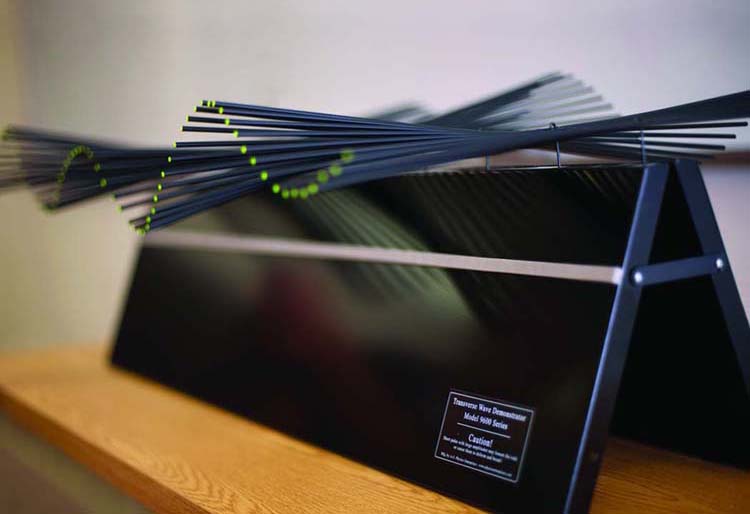

The Wave Motion Demonstrator allows mechanical waves to be created to demonstrate the behavior and properties common to many types of waves.
How It Works
A series of steel rods is attached at their centers to a torsion wire. When a rod is displaced and released, a wave propagates along the rod. Velocity depends on the torsion constant of the wire and the moment of intertia of the rods.
Wave Demonstration
-
Wave Propagation
-
Velocity in Different Media
-
Wavelength versus Velocity and Frequency
-
Reflection at Fixed and Free Boundaries
-
Constructive and Destructive Interference
-
Standing Waves and Resonance
-
Reflection and Transmission at Media Boundaries
Wave Motion Demonstrator – Complete Unit
Features
-
2.3 Meters Long - plenty of room to watch the wave develop and interact
-
Three Wave Sections - each section has rods of different lengths, allowing reflection and transmission demonstrations
-
Folds for compact storage
-
Easy setup
Includes
-
Module 1: 92 cm long with 72 rods each 46 cm long
-
Module 2: 92 cm long with 72 rods each 23 cm long
-
Module 3: 60 cm long with 47 rods, 46 cm long at one end, 23 cm long at the other end
-
Clamp for rigid termination
-
Dash Pot for liquid damping
-
Manual
Wave Motion Demonstrator – Single Unit
Includes
-
Module 1: 92 cm long with 73 rods each 46 cm long
-
Clamp for rigid termination
-
Dash Pot for liquid damping
-
Manual
Downloads
In case of further questions, please, contact us.
