Chemistry deals with really small particles -- things on the scale of about 1 nm - 1000 times smaller than a hair. Because our eyes can't see atoms and molecules directly, we rely on instruments to help us understand what is going on with the atoms and molecules.
The department has many modern instruments that are used across our curriculum and in our research. Key among them is a 400 MHz NMR spectrometer. We are working to maintain and grow our fleet of instruments. During the summer of 2011, we were pleased to receive a new HPLC system and fluorescence spectrometer. In 2012 the department added a much needed GC-MS instrument, and in 2013 we are happy to announce the new ICP-OES which replaces the automic-absorption spectroscopy of yesteryear. These instruments complement our existing instrumentation. We look forward to continuing to work with the university, granting agencies, and alumni to continue to maintain and grow our assortment of instruments.
Facilities renovation project
The university has committed to a multi-year project to upgrade the learning facilities and air handling (HVAC) system in the chemistry building, Halenz Hall. The project commenced in the summer of 2010 with the installation of a higher capacity air handling unit. The summer of 2011 was used to perform a major HVAC infrastructure update. A key improvement, ready in the fall of 2011 and supporting our teaching mission, was a new stockroom facility with acid and flammables storage cabinets, modern stainless and plastic storage shelves, new fume hoods, and updated work areas. We are grateful for generous and timely support from our alumni to support that purchase. During the summer of 2013 the organic chemistry teaching labs are being completely redone from the ground up with all new flooring, benches, sinks, hoods, work stations, and state-of-the-art teaching tools. The HVAC upgrade will also be finished this summer which will mean that every fume hood will now be new and meet modern safety and air quality standards. Another major improvement to greet the students this fall will be a full amphitheater renovation with new carpeting, chairs, demo-bench, projection equipment and "smart" whiteboards for lecturing.
Nuclear Magnetic Resonance Spectrometer (NMR)
The NMR is a key instrument for determining the structure of molecules.

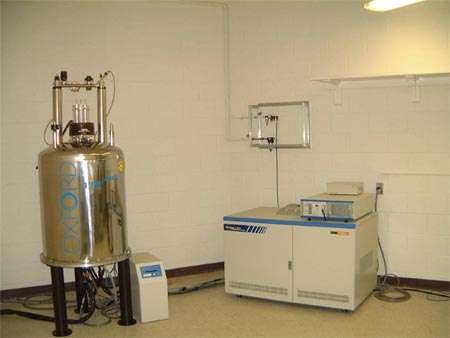

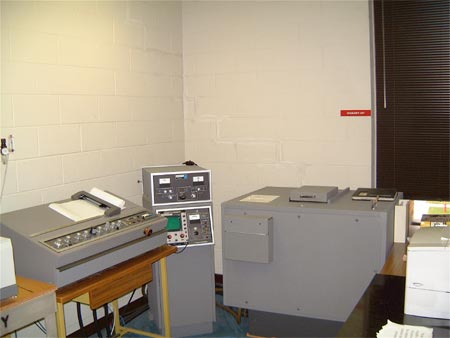

Supported by the National Science Foundation (NSF), alumni, and the university, in 2001, the department acquired a 400 MHz Fourier Transform NMR. Our JEOL Eclipse+ spectrometer instrument is equiped with a multinuclear, broadband probe allowing us to measure spectra from nuclei from 15N through 31P along with 19F and 1H. The superconducting magnet is actively shielded and is equipped with an 8 place autosampler as well as an autotune unit. The probe contains gradient shimming coils that improve the speed at which various measurements can be performed.
This type of instrument is available to graduate students at major research universities. At Andrews, the NMR is used in the general chemistry, organic chemistry, instrumental analysis, and biochemistry laboratories, and is a key part of undergraduate research.
The NMR works by placing samples in a magnetic field that is about 200,000 times stronger than the earth’s magnetic field and using radio frequency pulses, in the MHz region, to flip the spin state of magnetic nuclei in molecules. The splitting patterns, intensities, and chemical shift information can be interpreted to define the structure of molecules.
UV-Vis-NIR Absorption Spectrometer
The UV-Vis-NIR (ultraviolet-visible-near infrared) spectrometer is an important instrument that helps students characterize new molecules that are prepared and to determine the amount of compound in a solution. Simply put, this instrument helps us to measure the color of samples.
Supported by another grant from the NSF, Dr. Murray was able to acquire a research grade Varian Cary-5000 scanning spectrometer that covers the spectral range 185nm - 3300nm. We use this instrument in various upper division and lower division courses as well as in research.
We also use modern Ocean Optics absorption spectrometers using fiber optic technology in some of our teaching labs.
The Absorption spectrometer works by monitoring the amount of light absorbed at various wavelengths. Samples absorb light at specific energies (wavelengths) due to electrons moving between orbitals in molecules. The energy difference between the orbitals gives compounds different colors.
Fourier Transform Infrared (FTIR) Spectrometer
The FTIR is an important instrument that helps scientists understand the parts of a molecule that are present.
We have a Nicolet FTIR Magna 550 spectrometer capable of resolutions as low as 0.5 cm-1. The Fourier Transform method relies on computational power and allows multiple spectra to be obtained very quickly. The FTIR is a key research tool and used in organic chemistry labs.
Specific parts of molecules have characteristic energies at which they absorb infrared light. At these characteristic energies, certain molecular vibrations are excited. For example, stretching of C-H, O-H, or C=O bonds or bending of H-C-C groups.
UV-Vis Fluorescence Spectrometer
In 2011, with generous university support, the department acquired a new Agilent UV-Vis Eclipse emission spectrometer. The excitation wavelength and emission are individually scanable from 200-950nm. We were able to include a plate reader that will facilitate analyzing multiple samples in parallel. This unit will be used in Instrumental Analysis (and possibly Physical Chemistry II) as well as research by Dr. Murray and Dr. Hayes.
Fluorescence is the process that we observe in substances that glow under “black” or Ultraviolet (UV) light. In the fluorescence process, photons of light are absorbed by a sample and then re-emitted at a longer (lower energy) wavelength. The fluorescence spectrometer will allow us to understand the wavelengths at which molecules absorb light and also the wavelengths at which they are re-emitted.
High Performance Liquid Chromatography
In 2011, the university supported the purchase of an Agilent High Performance Liquid Chromatography system with a refractive index detector and a photo-diode array detector. We have been very pleased to begin using this instrument in our courses.
Raman spectroscopy is a complementary tool to IR and is finding increasing use in both qualitative and quantitative sample characterization. Raman, like IR, works by determining the energy at which molecules vibrate. The department has a Raman Systems RSI-2000 bench-top Raman spectrometer. The compact fiber-optic excitation and detection sample head is ideal for safe student use. We have probes available to collect Raman spectra of solid and liquid samples. Additionally, an immersion probe allows us to measure the spectrum of a sample directly in solution – useful for monitoring reactions. We have used Raman spectroscopy in General Chemistry and Physical Chemistry II labs.
Laser and advanced optics
The department has a Mini-Lite Nd:YAG (neodymium-doped yttrium aluminum garnet) laser that is used in General Chemistry and upper division labs (after proper training). Doubling, tripling, and quadrupling crystals are available to achieve high power pulses of light at wavelengths from the infrared to ultraviolet regions of the spectrum. We also have a monochrometer with a CCD camera that can collect Raman spectra. The laser is used in advanced lab courses with appropriate safety measures in place.
We have a computer-controlled Cypress potentiostat to measure the current-voltage response of chemical systems. This can be used to characterize the voltages where compounds lose or gain an electron. It can also quantitate the amount of substance present. We use this system in the instrumental analysis lab.
Time of flight Gas-Chromatography Mass Spectrometers
TOF-GC/MS: Advanced students have access to a gas chromatography - time of flight mass spectrometer housed on campus. Gas chromatography is able to separate the components of complex mixtures, while mass spectrometery is able to identify the molecular components in the mixture. Time of flight mass analyzers makes use the fact that heavier molecules fly slower than fast molecules that are imparted with a constant amount of energy.
Single Quad-GC/MS: In the Summer of 2012, the department with university support purchased an Agilent GC-MS for more undergraduate access. The mass analyzer is a Single Quadrupole and the system has an isolated GC column.
Inductively coupled Plasma Atomic Emission Spectroscopy
In 2013 we are adding the Optima 8000 ICP-OES Spectrometer to our instrumentation stock. The ICP-OES uses inductively coupled plasma to produce excited atoms and ions allowing students in our analytical chemistry labs to identify trace elements from the emission of electromagnetic radiation at characteristic wavelengths.
